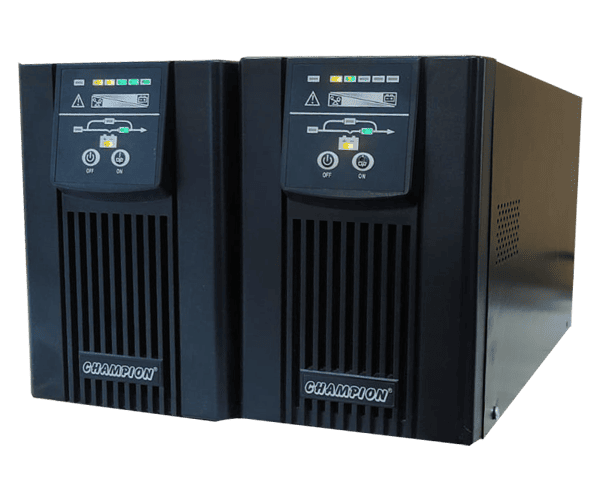

Line Interactive UPS

800VA-3000VAPure Sine Wave UPSExternal Battery

Description

The Champion line interactive pure sine wave UPS comes with extended runtime solution and it is designed for superior protection, high performance and reliability. This is the ideal solution for the protection of computer system, peripheral network devices, servers & network backup systems.
Higher Power Protection: The Line Interactive technology combined with EMI filters for protection from surges and transients. When the mains power supply fails, the load is powered by the inverter, providing a stable sine wave output for maximum power continuity and reliability. These UPS comes with Automatic Voltage Regulator (AVR) provides protection from brownouts, surges, over voltages and under voltages, without battery intervention.
This UPS comes with built in heavy duty battery charger which enables to increase the backup of the UPS depending upon the power outages. These UPS are compatible with any battery and it maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Features

  • Line Interactive Technology
  • EMI Filters
  • Pure Sine Wave Output
  • Automatic Voltage Regulation (AVR)
  • Full protection from Short-Circuit, Overload, etc.
  • Cold-Start Facility
  • Heavy Duty Battery Charger
  • Optional Software Interface
  • Wide Input Range (145~270VAC)
  • Compatible with any battery
  • Adequate backup even for high end PC
  • Back-up time available upto 10 hrs

Applications

  • Computer System
  • Printer/Scanner
  • Speakers/Music System
  • Peripheral network devices
  • LED/LCD TV
  • Telephone Systems
  • Servers
  • Security Systems

Technical Specification

Models UPS-800LI UPS-1200LI UPS-3000LI
Input
Capacity 800VA/480W 1200VA/800W 3000VA/2100W
Input Voltage 220VAC, single phase
Input Voltage Range 145VAC-270VAC ± 2
Input Frequency 50Hz ± 4
Output
Voltage on Battery Pure Sine Wave output at 220VAC ± 5%
Frequency on Battery 50Hz ± 1%
Batteries
DC Bus Voltage 12V 24V 36V
Recharging Time 4 - 6 hours for 90% capacity after discharge to 50%
Protections
Over / Under Voltage Switch to battery when utility under/over regulation range
Overload / Short-Circuit On-battery-internal current limiting. On-line fuse
Low Battery Automatic deep discharge protection
Advance Warning Indicators
LED AC Normal, Back-up, Charging, Low Battery, Battery Level & Load Level Bar Graph
Audible Alarm On battery, Low Battery, Overload
Environmental
Ambient Operation 0-95% Humidity Non-condensing, 0-40 deg C
Audible Noise <45 dBA (1.2 mts from surface)
Physical
Communication Port RS-232 (Optional)
Mechanical
Dimension (LxWxH) (mm) 400x145x210 400x145x210 455x195x345
Net Weight 7.5 kgs 10.5 kgs 23 kgs
* Specifications are subject to change without any prior notice.

Download Product Catalogue

Model: UPS- 800LI -UPS1200LI -UPS 3000LI

Download PDF

Reviews & Ratings

4.5

Average Rating

Have you used this product?
Write a Review

  Aashish Goel

  Nov 18, 2015

Best for multiple PCs


Using it for long time, no problem at all, provides stable power, I can say that my devices are well protected.
Backup time vary with battery used. You can get backup time from 15 mins to many hrs.

Frequently Asked Questions

7

Questions

7

Answers

Have a Question? Get answers from experts.
Ask a Question

What should be considered when buying a UPS system?

Existing Installations: Consider a central back-up system to eliminate expensive re-cabling. Wise to involve a company specialising in power conditioning.
New Installations: Access the level of power protection required. Some installations may demand that every item is supported by UPS, others may only require UPS for a central server and one or two workstations.
Type of Client/Application: Emergency services, financial institutions, Industrial etc. This can have an impact on the system specification.
Site Location: Inner city areas may be more susceptible to power fluctuations. Rural areas may be affected by weather conditions on power lines. More remote areas may be located at the very end of the power line.

What is Sine wave ?

It is the ideal waveform for the transfer of AC power. There are two types of waveforms available. A "modified sine wave", and the "true sine wave".
Modified Sine Wave -The modified sine wave is not really a sine wave at all. It is more less a "stepped wave". It achieves voltage regulation by varying in width according to the battery voltage and the load. Thus, the wave is not as smooth as a sine wave. The quality of modified sine wave inverters should not be underestimated. They are highly capable, and (by narrowing the waveform) they save energy when running only small loads, as happens during most of the day in a typical home. Modified sine inverters have been successful in many thousands of remote home, RV and marine systems since 1986.
True Sine Wave - Also known as Pure Sine Wave, is the most reliable waveform and provides power almost identical to a standard wall outlet. The power produced fully assures that your "sensitive loads" will be correctly powered, with no interference. Some appliances are likely to require Pure Sine Wave including digital clocks, battery chargers, light dimmers, variable speed motors, and audio/visual equipment. For these reasons, true sine wave inverters can be more a more expensive choice.

What is a 'Line Interactive' UPS?

Line interactive technology sits between offline and online. The load is fed from mains during normal operation, however unlike 'offline', this technology incorporates various filters to provide voltage stabilisation and help suppress spikes and transients.

What is the difference between "KVA rating" and "KW rating" of UPS?

The mathematical relation is kW= kVA *pf. where kW is active or useful power and kVA is the vector sum of active power and reactive power. The equation therefore is kW= kVA *pf

What is the Input Power Factor (p.f.) of the UPS at different loads?

Power factor is a function of phase displacement angle between voltage and current and distortion factor. It is calculated as a ratio of real power to apparent Power drawn by load. PF is low at lower loads and goes on improving at higher loads. PF is also lower at higher input voltage and goes on improving as voltage reduces. Input Power Factor is independent of type of load for double conversion technology.

How can I remotely monitor my UPS system?

There are two ways in which you can monitor your UPS remotely. One option is to install a wall mounted Remote Panel (MultiPanel) that connects to the UPS to a serial port on the UPS and offers the advantage of full digital metering (available for all UPS models - 400 m cable max and required 230 Vac UPS backed mains supply). The panel incorporate a multi function audible alarm with mute facilities and lamp test.
The alternative option is to utilise the computer network with our NetMAN network adaptors to provide full UPS status and measurement values via a web-browser with facilities to send alarms using email, SMS messaging, SNMP traps or directly to an existing BMS system. This device can also offer temperature monitoring and unattended server shutdown when combined with optional modules.

Can I add more UPS modules to the system when my load increases?

Yes, the MST, MPS and MHT ranges employ a plug and play parallel system that allows additional units to be added to an existing system at a later date. Additional UPS units can be added to either provide redundancy or extra capacity if the load increases. Sometimes it’s worth investing in additional switchgear early on so that more units can be accommodated much more easily.
